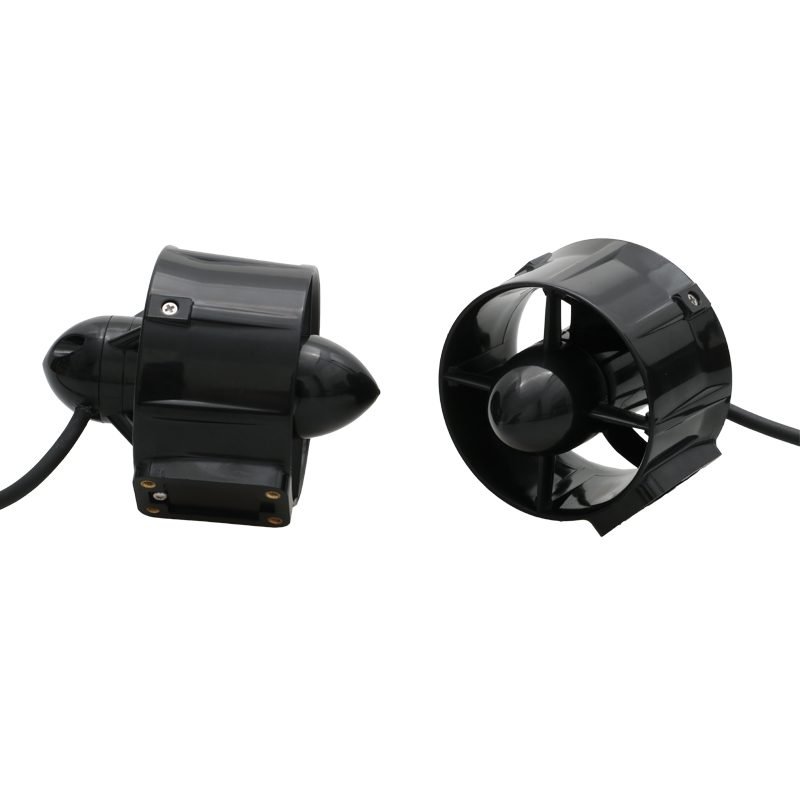

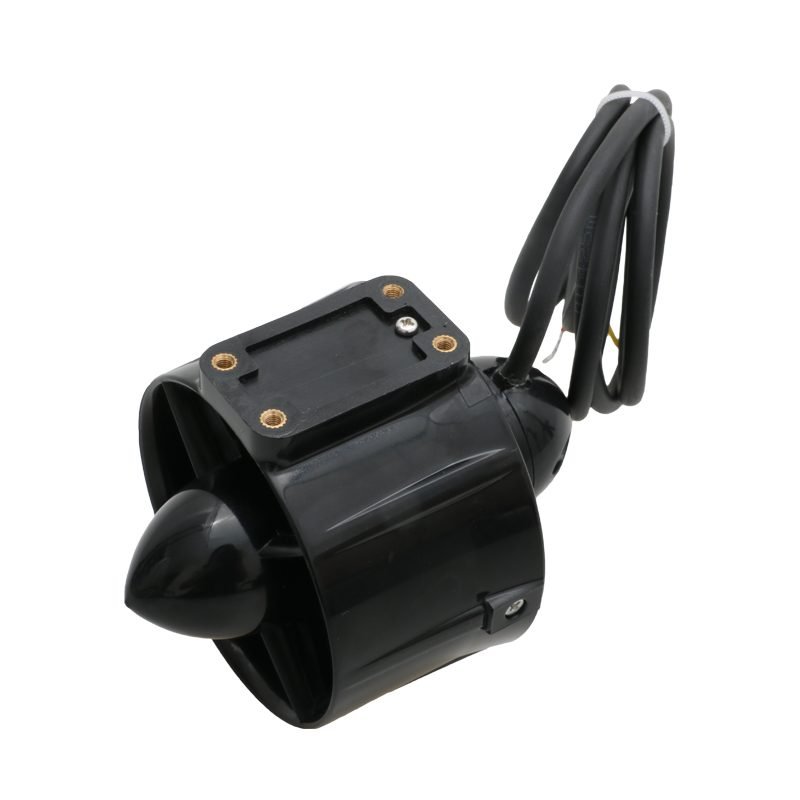

Бесщеточный двигатель ROV M060 Underwater Thruster

Название продукта: M060 underwater thruster

Описание:
– Working temperature: 0-60℃
– Main shaft material: 316L
– Propeller material: PC-ABS
– Number of pole pairs: 7pairs
– Sealing method: epoxy resin potting

– Motor type: outer-rotor brushless motor
– Cable length: about 0.9meters
– Cable diameter: 5mm

– Max working underwater depth: 150meters
– Can be worked in freshwater and seawater

– Air weight: about 200g
– Water weight: 100g

Product parameters for max thrust:
– 24V, forward,3.46kg; 24V, reverse, 2.61kg
– 16.8V, forward,2.02kg; 16.8V, reverse, 1.62kg
– 12V, forward,1.28kg; 12V, reverse, 0.96kg

Размер:
– Thruster length: 90mm
– Fairing diameter: 69mm
– More size refer to picture shown

Wiring instructions:
– Provide power supply for the controller, typically 5V; please refer to the controller parameters for details.
– There are three contacts on the right side of the ESC, which are connected to the three wires of the brushless motor. The connection method is not fixed; swapping the positions of any two wires will reverse the rotation direction of the motor.

– There are four wires on the left side of the ESC, which are the positive and negative poles of the power supply and the positive and negative poles of the signal respectively.
The thick red wire (V+) is connected to the positive pole of the power supply, and the thick black wire (V-) is connected to the negative pole of the power supply.
The thin white wire (S+) is connected to the signal positive pole (S) of the controller.
The thin black wire (S-) is connected to the negative pole (-) of the controller.

Примечание:
– size is manual measurement, there are exist errros

– If need pressure testing, please perform simulated water pressure testing, it is prohibited to apply positive or negative pressure at the line end for sealing testing, otherwise, it may cause problems such as water leakage within the line，our store is not reponsible

– When using an high power ESC, it is necessary to increase heat dissipation treatment to ensure good heat dissipation, otherwise it may cause the electric regulator to overheat and cause the motor to stop running

– This product cannot be directly plugged in for use, it is brushless motor thruster, it needs to be driven by ESC and controlled

total 3 types for your refer:
– 1pcs forward underwater thruster
– 1pcs reverse underwater thruster
– 1pair thruster

Pacakge include is optional
