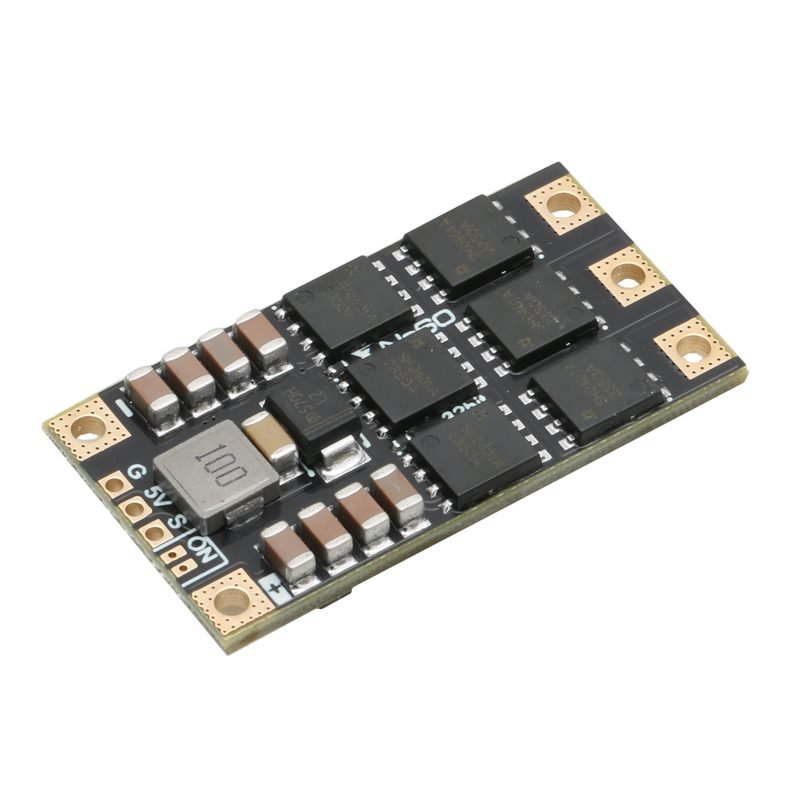

2-6S AM32 60A Brushless ESC

Внимание:
– Before shipment, the ESC (Electronic Speed Controller) undergoes rotation testing and BEC load testing to ensure all units are in good condition.
– Buyers are required to have soldering and debugging capabilities.

– The default configuration is for RC model aircraft use. For vehicle applications, the mode needs to be changed to vehicle mode. (This require tuning parameters by parameter adjuster)

New Upgrade Features:

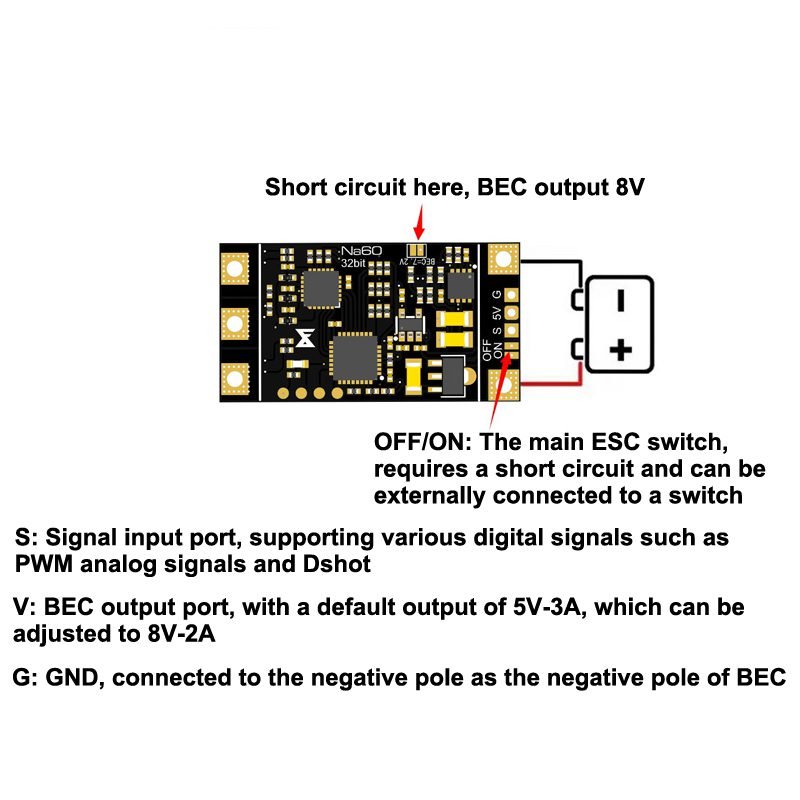

– Powerful soft switch effectively turns off the ESC + BEC, eliminating the need for a separate external switch.
– 2-stage BEC with 5V to 8V, Max 3A output.

Технические характеристики:
– Item name: AM32 60A 2-6S Brushless ESC

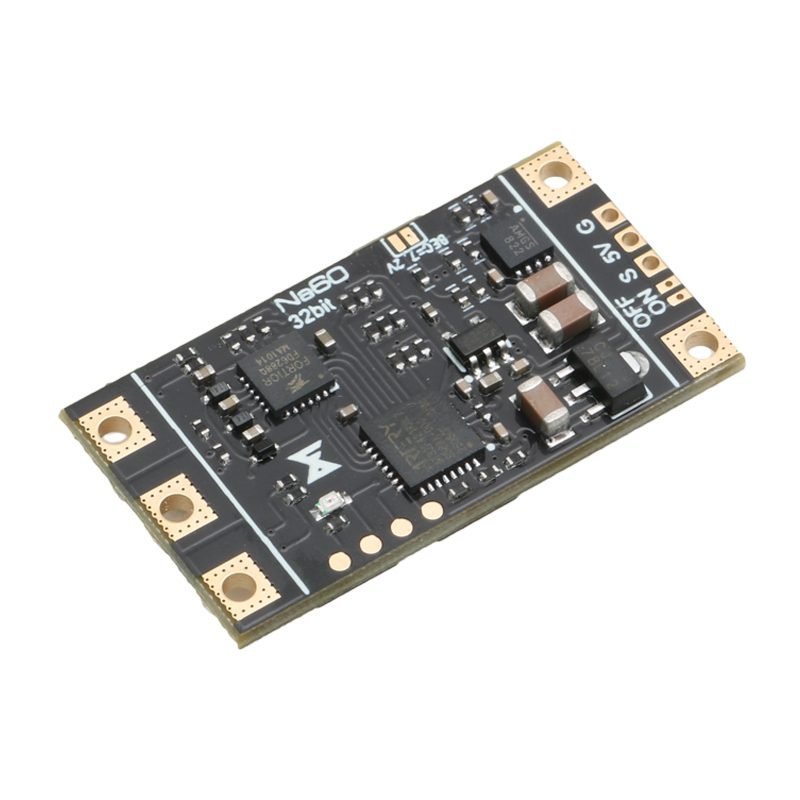

– Main Controller: AT32F421 120MHz
– PCB: 2OZ copper + tin plating + 2u gold plating
– BEC: Default 5V3A 8V2A
– Input Voltage: 2-6S LiPo
– Maximum Continuous Current: 60A
– Peak Current: 75A (3 seconds)
– Firmware: AM32
– Supported Offline Configuration Tool: SerialPortConnector
– Supported Online Configuration Tool: esc-configurator

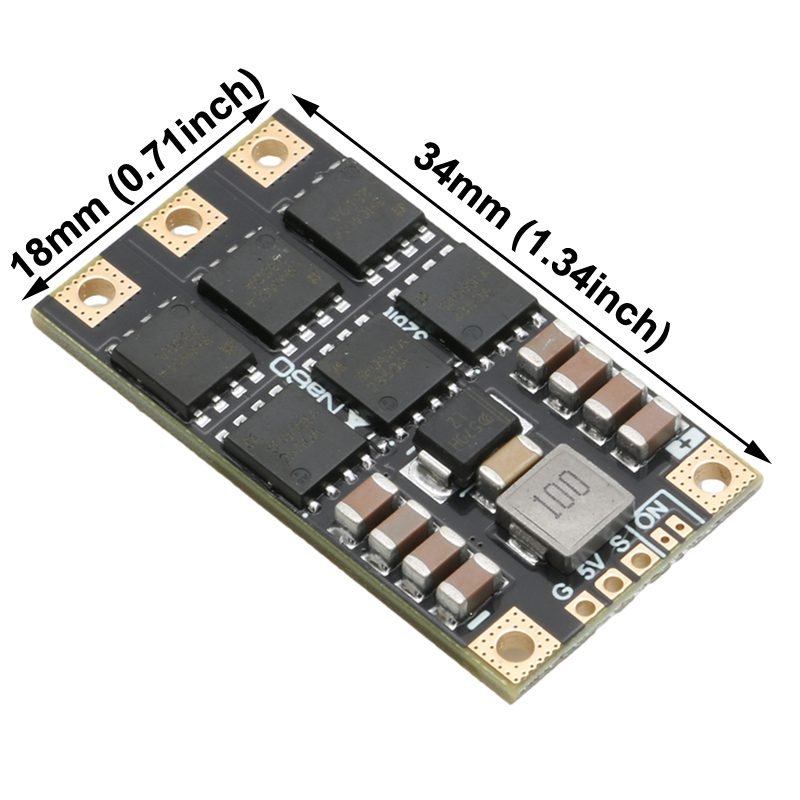

– PCB Size: 34x18mm (1.34×0.71inch)
– Weight: about 21.1g (with accessories)

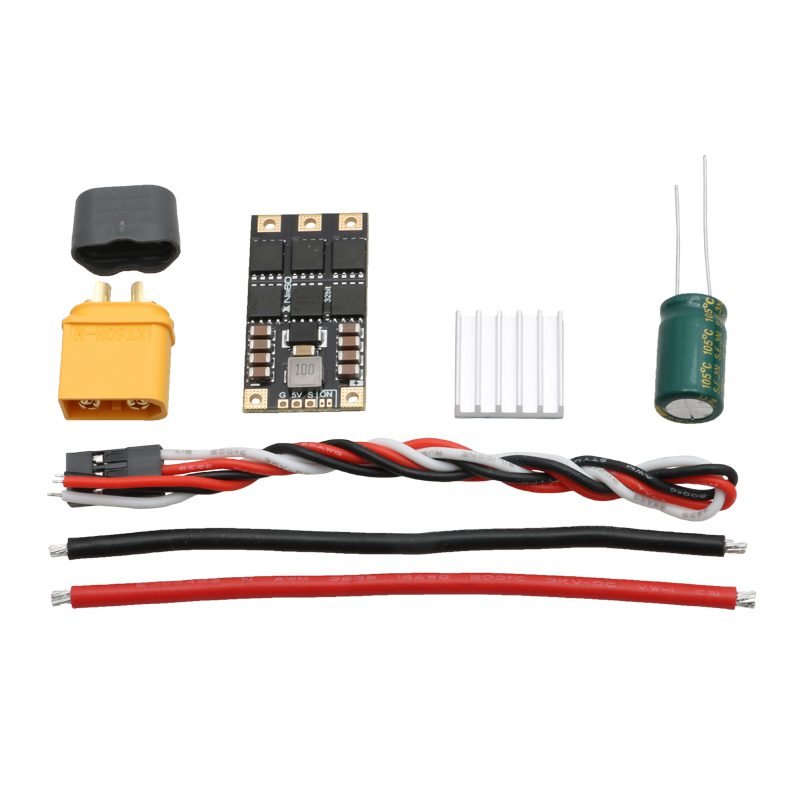

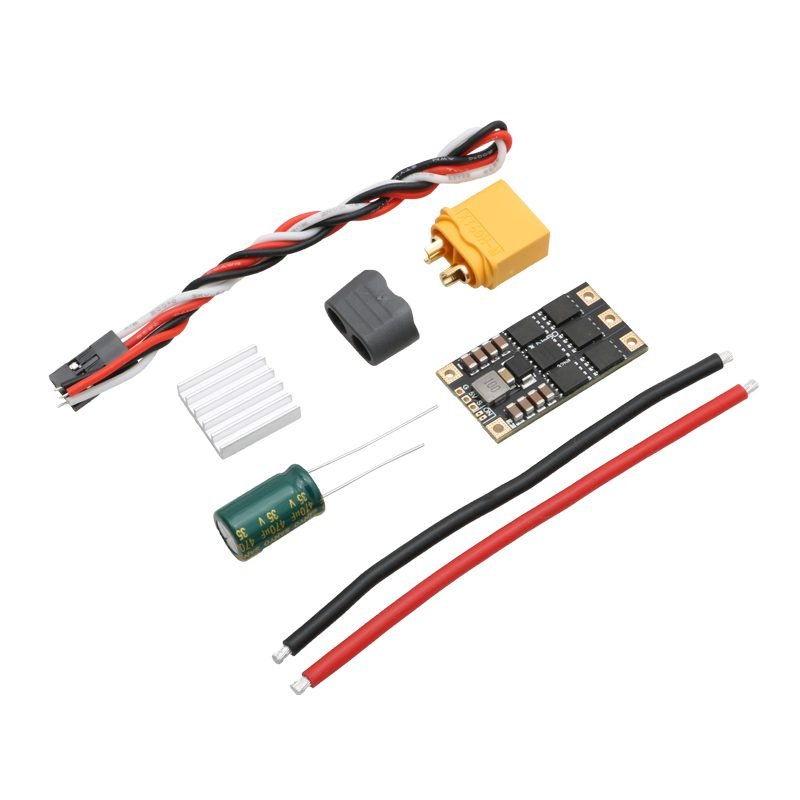

– Shipping List: 1pcs ESC, 1pcs XT60 connector, 2pcs power cable, 1pcs 3P silicone DuPont wire, 1pcs heat shrink tubing, 1pcs cooling fins, 1pcs capacitor

Описание:
– Adhesive cooling fins and suitable heat shrink tubing are included in the package. The PCB uses a 6-layer gold-plated board process.

– This brushless ESC is suitable for fixed-wing RC models, boat models, and car models. It supports traditional square wave starting, fast response, and rapid power output, making it ideal for propeller-driven models.
– It supports bidirectional rotation and electronic braking.

– Compatible with PWM, DSHOT, PROSHOT, duty cycle signals, and digital ESC signals.
– Supports sine wave starting, delivering smooth low-speed operation with high torque output, suitable for pulley-driven models. The AM32 ESC features sine wave starting, excellent low-speed linearity, and torque compensation.

– This board is optimized for crawler vehicles or boat models and can be externally connected to a physical switch for soft shutdown (for short-term use). For long-term use, please disconnect the battery to power off.

– For high-voltage and high-current output of the ESC, natural air cooling via airflow is required. In enclosed environments for vehicles or boats, additional cooling fins (NOT included, prepare by yourself) must be added when using at maximum current.

Примечание: размер является ручное измерение, есть ошибки

Пакет включает:
1set x AM32 ESC
или
1pcs x parameter adjuster
