Steel Wire Rope Isolator Damper Shock Absorber

Tips:
ALJ-831,ALJ-832,ALJ-833 wire rope shock absorbers are silver,

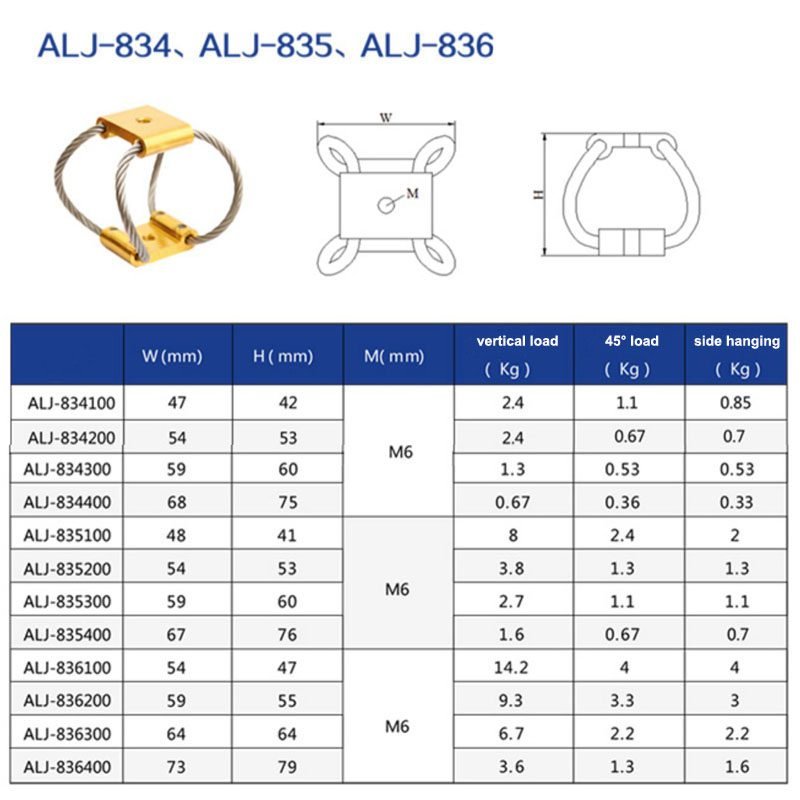

ALJ-834,ALJ-835,ALJ-836 wire rope shock absorbers are yellow.

Application:
– The ALJ series isolators are used widely in the field of aerial photographic equipment, UAV camera, aerial imagery, video project, helicopter drone, cameras, etc.
– By building your own Camera Gimbal Drone or using for your helicopter drone cameras, the ALJ Series compact wire rope isolators is your best choice!

Description:
– Item name: shock absorber
– Load: 0-15kg
– Simple structure, simple and light,wide load range and obvious shock absorption effect, 304 stainless steel wire rope, high temperature resistance and strong corrosion resistance. Suitable for photography machine,UAV, electronic precision instruments. Solve the vibration problem of photography equipment during all dynamic shooting

Product description:
Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

Wire rope isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.

Package include:
1pcs x shock absorber
