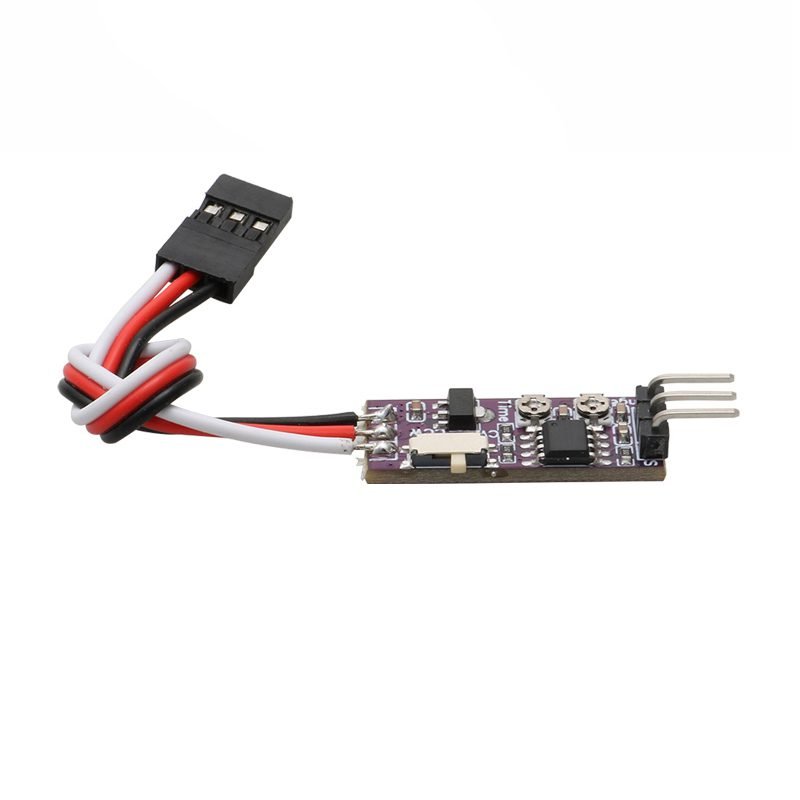

5-30V Multifunctional Servo Controller

Description:
– Hardware: 16 bit PWM (resolution 65535)
– Servo line length: 100mm
– Weight: about 2.8g/pcs
– Board size(length x width): 26x10mm
– Equip with screwdriver
– Used for rc model diy modification

Features:
– Adjustment accuracy: The resolution of the 12 bit ADC is 4096 (which means the output signal is divided into 4096 points, while the ordinary servo controller only has 256 points, which is 8 bit accuracy).

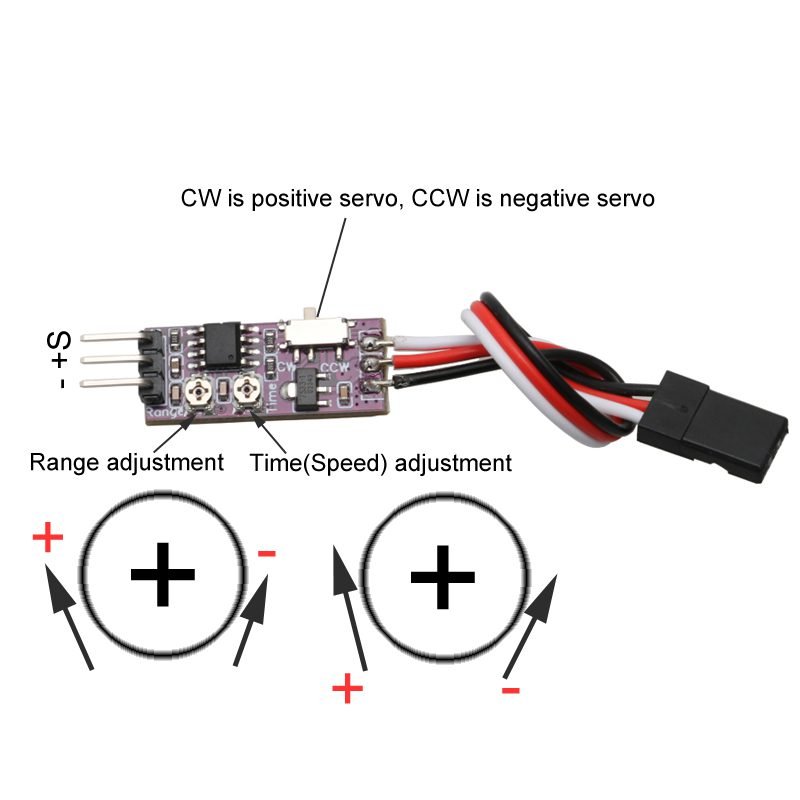

– Range adjustable: clockwise rotation of the small potentiometer can amplify or counterclockwise rotation can reduce the swing range of the servo.
– Time (speed) adjustable: clockwise rotation of the small potentiometer can accelerate or counterclockwise rotation can slow down the swing speed of the servo motor.
– Positive servo/negative servo (CW/CCW): toggle the switch to the left for positive servo and to the right for reverse servo.

Note:
– Size is manual measurement, there are exsit errors.
– The CW CCW will take effect after being repowered on.

Package include:
1pcs x servo controller
