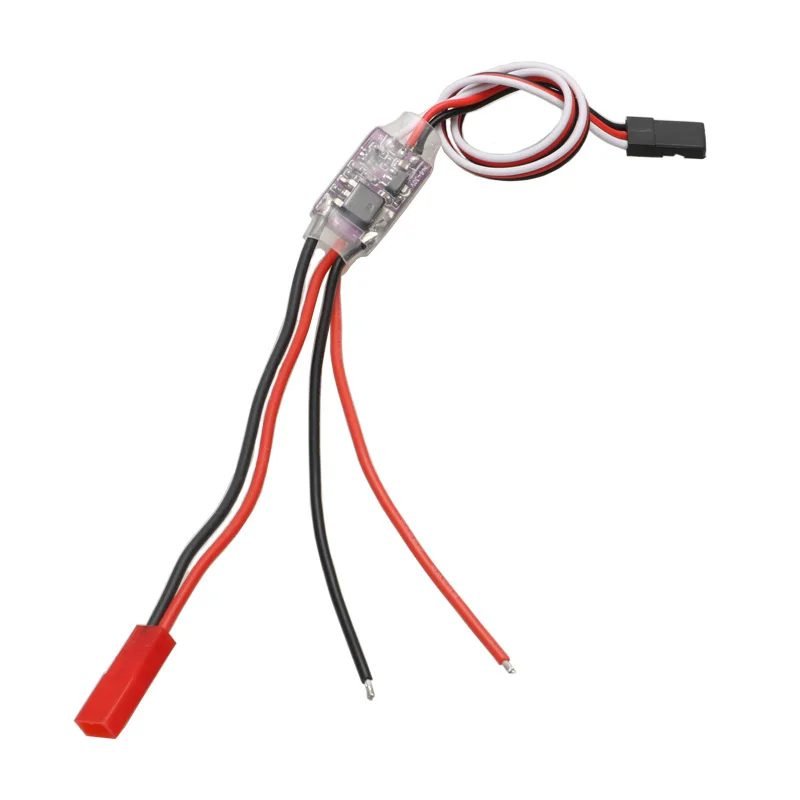

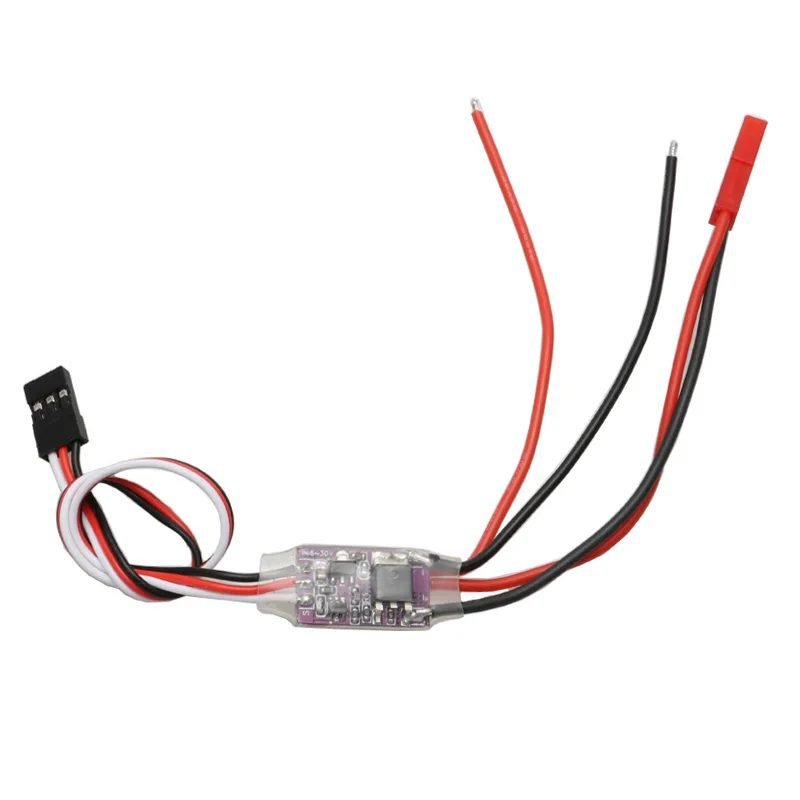

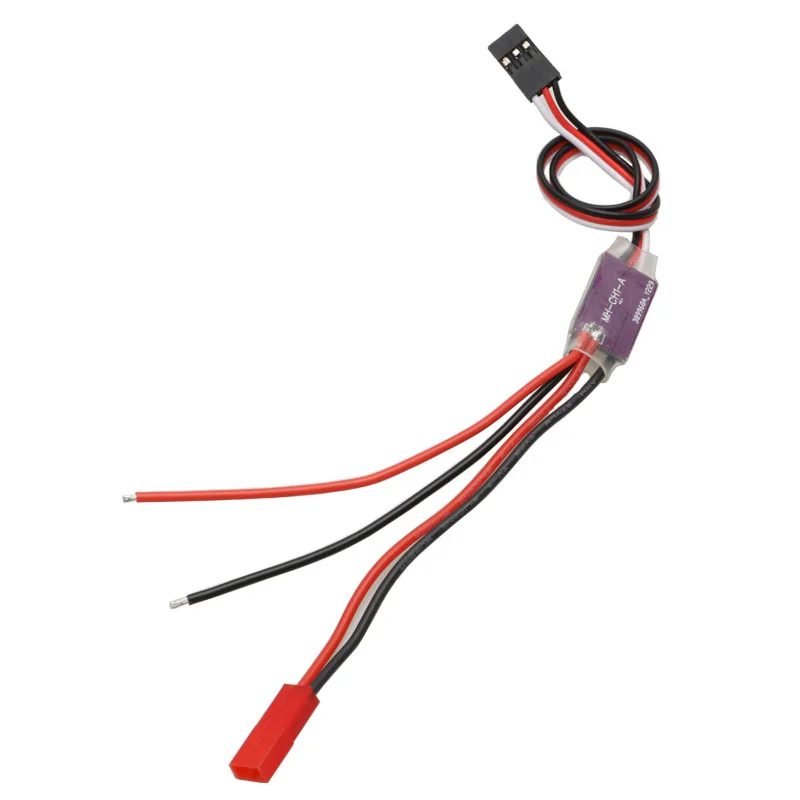

6V-30V 10A Electronic Relay Switch

Description:
– Item name: electronic relay switch
– Can’t power supply for receiver
– With power-on protection
– Without signal protection

Control mode:
– Two-stage fluctuation switch channel：
OFF: low 1000us
Conduction: high 2000us

LED indicator light:
– Red light always on: work normal
– Red light flashing: without signal
– Blue light on: switch on
– Blue light off: switch off

Application:
– LED light remote control switch
– Occasions requiring switch control
– Power supply connection and disconnection

Note:
– The electronic switch is not suitable for receiver power supply
– The RC switch comes with power-on protection and no signal protection, using 80A tube, working voltage is powered by below 10A
– Please strengthen the heat dissipation by yourself if the current is greater than 10A
– Size is manual measurement, there are exsit errors.
– The light board in picture shown will not include.
– Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.

Package include:
1pcs x electronic switch
