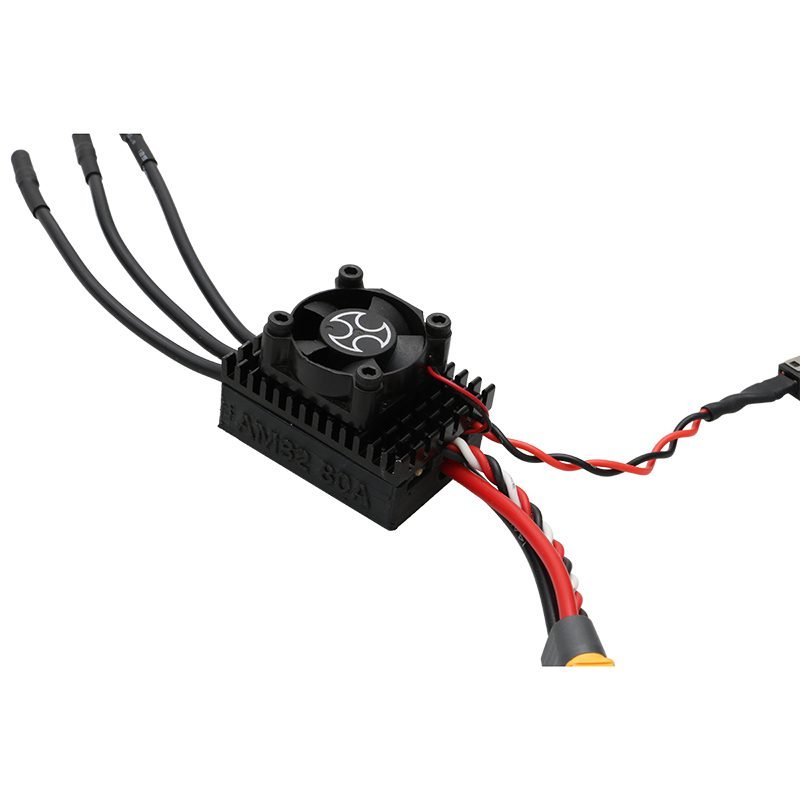

AM32 80A Brushless ESC Module

Attention:
If you need to adjust the parameters by yourself, please contact our customer service personnel to obtain the official AM32 parameter-tuning software. We will not provide after-sales service if the ESC fails to function properly due to the improper use of parameter-tuning tools.

Description:
– AM32 brushless ESC, current 80A, classic car shell, selected high-power MOS tube, equipped with heat sink and fan, powerful. Small body and high power, it is the preferred power source for medium-sized RC car models.
– Using the AM32 open-source firmware, parameters can be freely adjusted, supporting dshot/pwm signals. There is linearity at low speeds and violence at high speeds, and the speed regulation is very smooth.
– It supports bidirectional operation, adjustable drag brake, sine start and other functions, and quickly switching between forward and reverse is very smooth.

Specification:
– Item name: AM32 brushless ESC
– Firmware: AM32 ESC firmware
– Size: 47x33x32mm
– Total length: 335.6mm (including cables)
– Switch: yes
– Voltage: 2-4S Lipo
– Current: 80A
– BEC: three-sections adjustable (5V, 6V, 7.4V), maximum 5A
– Power plug: XT60 (T-plug is optional, please contact us first)
– Motor plug: banana head plug 3.5mm
– Active heat dissipation: yes
– Outer shell: 3D printed
– Used for RC car models

Note: size is manual measurement, there are exist errors

Package include:
1pcs x ESC
