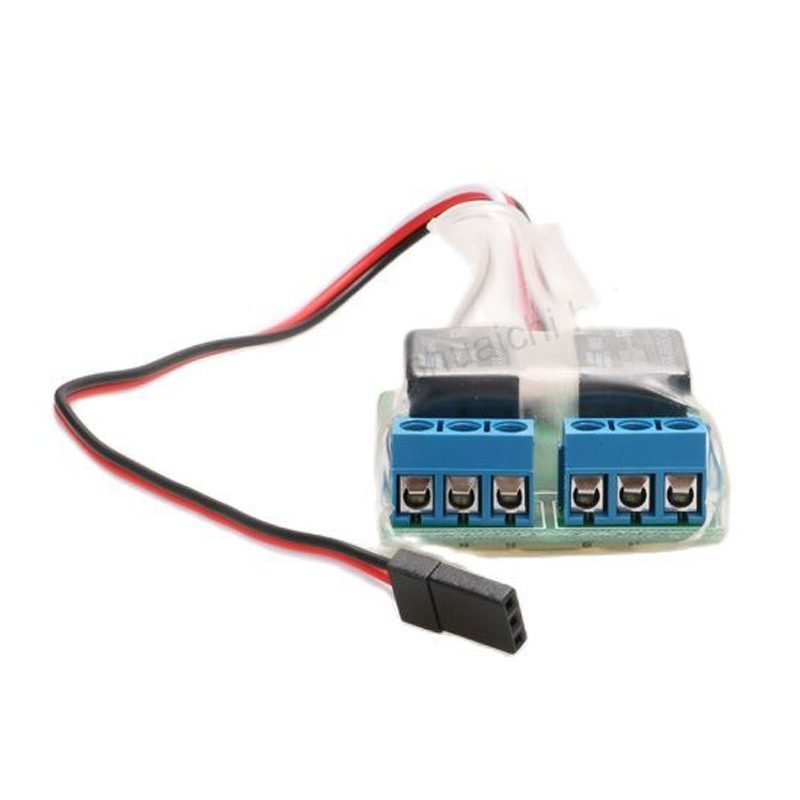

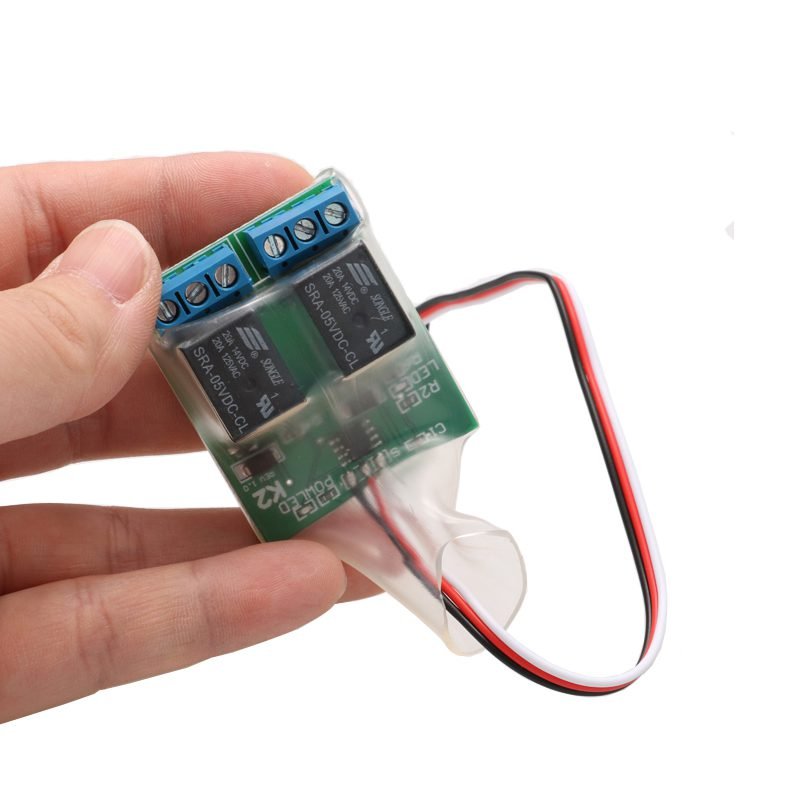

2-in-1 Relay Switch PWM On-off Controller Module

Application range:
– Remote control model rocket launch
– Remote control model smoke control
– weapon system control like real machine
– Model aircraft’s smoke control
– Control of various remote switch systems
-Switch the signals of two cameras
– Control the opening and closing of various electrical power sources, such as navigation lights, searchlights, strobe lights, buzzers, etc.
– Control the camera shutter or switch the camera’s recording and camera mode.

Features:
– 1 channel servo signal input, control two relay switches

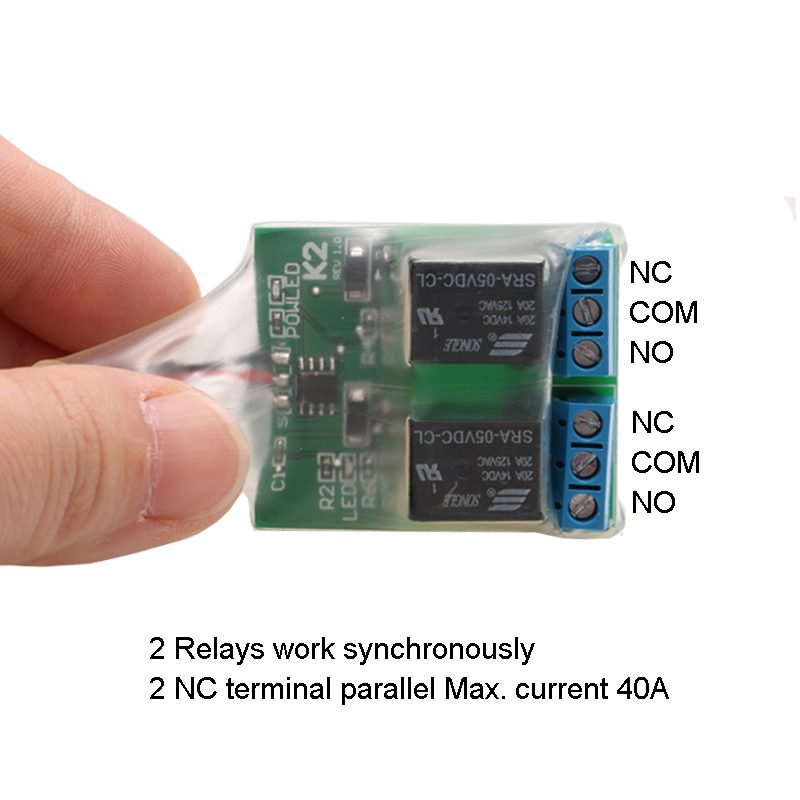

– Parallel maximum 40A current
– One way LED indicates working status
– With boot protection, easy to operate
– Input channels do not need to be calibrated, compatible with various brands of remote control devices
– Adopt transparent heat-shrinkable rubber, stylish appearance, at a glance
– Small size and light weight

Functional Description:
– The remote switch remotely controls the electrical equipment on the aircraft model through a switch channel on the remote control, and the 1-way LED dynamically demonstrates the current switch state in real time, so it can be quickly started without an operation manual.
– This device does not require calibration and can be accurately compatible with remote control devices of various brands.

Typical application:
1. Connect
– Plug the signal input cable into an idle receiver channel that corresponds to a switch on the remote.
– The power indicator will be illuminated when connected to the receiver.
– The work indicator lights up when the switch channel is open and vice versa.
2. Working mode
– The red LED light indicates the power indicator.
– The blue LED indicates the relay’s operating status.
3. Trigger
– Turn the switch on the remote control (OFF->ON), the green LED lights up and the relay starts to work.

Note:
Only 5V voltage receiver is supported, otherwise the module may be damaged. If the receiver and the servo are using a high voltage system, the module should be added with a step-down module.

Package include:
1pcs x Relay Switch
