2-4S 40A 32-bit AM32 ESC with 5V2A BEC

Achtung!
If you need to adjust the parameters by yourself, please contact our customer service personnel to obtain the official AM32 parameter-tuning software. We will not provide after-sales service if the ESC fails to function properly due to the improper use of parameter-tuning tools.

Beschreibung:
– A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.
– Selected low-power MOS tube for convenient heat dissipation and strong power.
– High speed fans actively dissipate heat, suitable for high load scenarios.
– Low speed torque compensation.
– Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.
– Integrates the BEC module (5V2A), adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.

– Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.
– With a 470uF 35V capacitor to improve its working condition.

Spezifikation:
– Item name: 32-bit ESC
– Firmware: AM32, supports foc
– Master control: AT32
– Working voltage: 2-4S Lipo
– Max current: 40A
– BEC: 5V2A
– Support signal: PWM/DSHOT/Sine, etc.

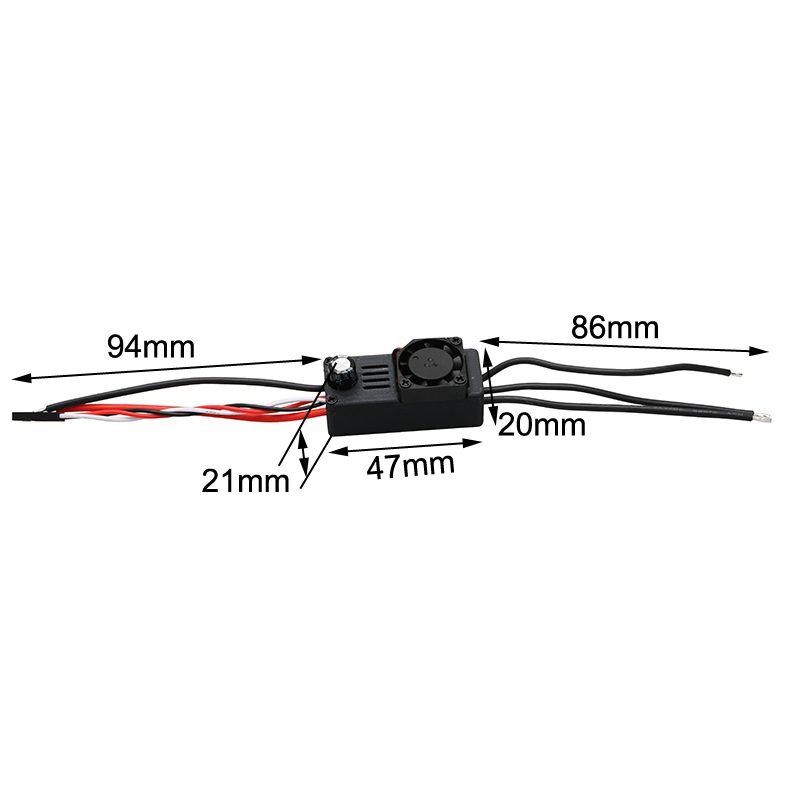

– Outer dimension: 47x20x21mm
– Signal cable length: 94mm
– Weight: about 23.5g

Strongly recommended! When using the AM32 ESC, it is necessary to use in conjunction with a parameter adjuster.

Parameter adjuster:
– Type-C port
– Special for AM32 32-bit ESC

Anmerkung:
- Größe ist manuelle Messung, es gibt Fehler.
– If you need to customize plugs (motor output plug, power input plug), please contact customer service personnel.

Paket enthalten:
1pcs x AM32 ESC
oder
1pcs x parameter adjuster
