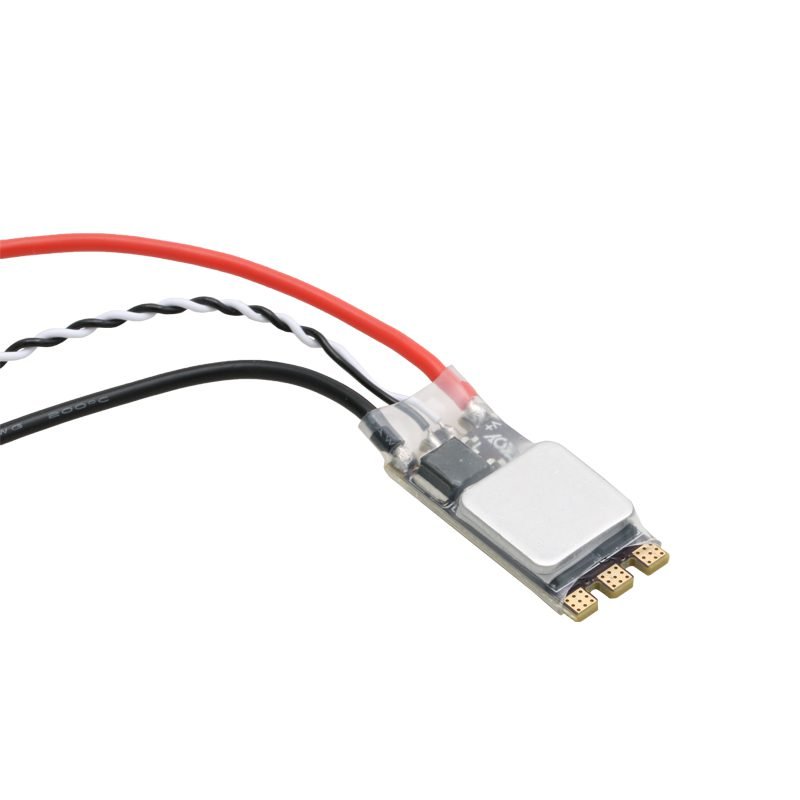

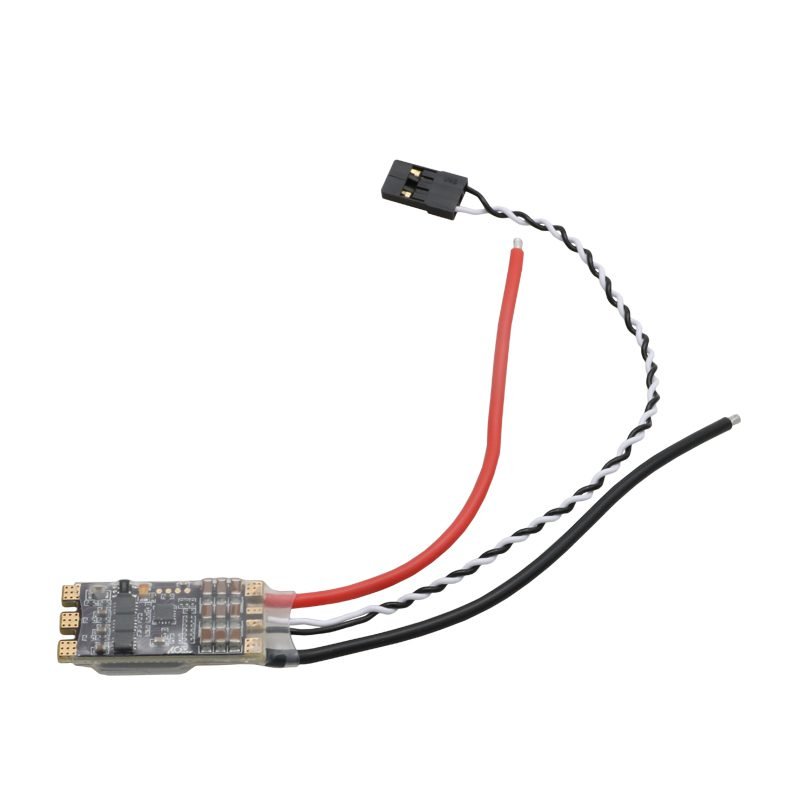

30A Dual-way Brushless ESC für ROV Unterwasserstrahlruder

Name des Produkts: dual-way ESC

Beschreibung:
This product has wide compatibility and can drive different types of brushless DC motors, such as model aircraft and multi rotor drones, ROV, AUV, Intelligent vehicles and other automated equipment.

At the same time, it has the advantages of low maintenance costs, easy replacement, and convenient debugging. The hardware has reliable protection functions: overheating protection, overcurrent protection, which can greatly improve the service life of the product.

Comes with BLHELI-S firmware. The firmware can be modified by connecting the flight controller to the BLHELISUITE software for easy parameter tuning.

Standard PWM control. It can be controlled by a PWM signal generator (not include) for forward rotation, reverse rotation, speed regulation, and other operations.

Beschreibung:
– Size: 32.6x15mm (1.28×0.59inch)
– Weight: about 11g/pcs
– Power cable specifications: 10cm x 2mm²
– Signal cable specifications: 15cm x 0.75mm²
– Waterproof depth: potting or other waterproof treatment is required
– Used for drone, RC bait boat, ROV, AUV brushless DC motors (BLDC)

Performance parameter:
– PWM cycle: 20000us
– PWM zero position signal: high level time 1500us
– PWM dead zone position: about 1485-1535us
– PWM maximum output position: 1150us/1850us

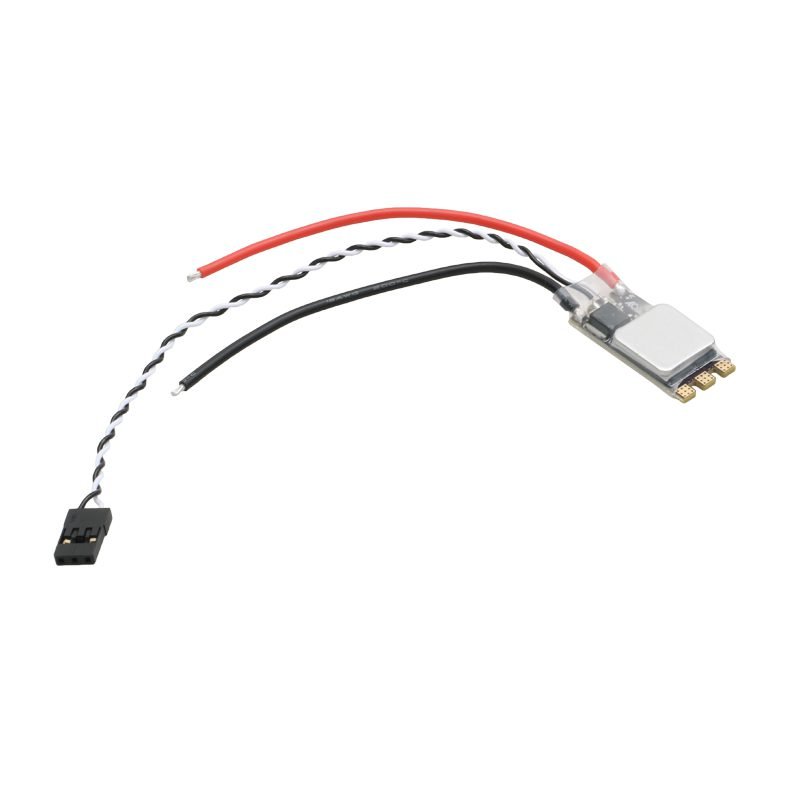

– Definition of Line Sequence:
Bold red: power supply positive
Fine white: signal positive
Bold black: power Ground
Fine black: signal ground

Merkmale:
– Safety protection and extended service life.
1. Overheating protection: When the preset temperature is reached, the ESC will stop working, and protect the components can work normally after being safely cooled down.
2. Overcurrent protection: When the motor experiences abnormal situations such as overload or short circuit, the ESC can quickly detect the change in current and automatically cut off the power output to prevent damage to the motor and ESC due to excessive current.

– Small size, light weight, easy to install in various devices or small spaces, saving space.

– Efficient energy conversion.
The ESC can effectively convert input DC power into three-phase AC power suitable for motor operation, with low energy loss during the conversion process, improving energy utilization efficiency. This is particularly important for devices powered by batteries, as it can extend the device’s battery life.

Anmerkung:
– Size is manual measurment, there are exist errors.
- Aufgrund von unvermeidlichen Faktoren wie Monitor, Aufnahmewinkel, Lichtquelle usw. kann die Farbe auf dem Bild einen sehr geringen Farbunterschied zu den Waren haben, die Sie erhalten. Alles ist abhängig von der Ware, die Sie erhalten.

Paket enthalten:
1pcs x ESC
