1-2S 20A Mini AM32 ESC

Spezifikation:
– Item name: AM32 ESC
– BEC module: no
– Weight: about 2.7g
– Used for small RC model airplane

Beschreibung:

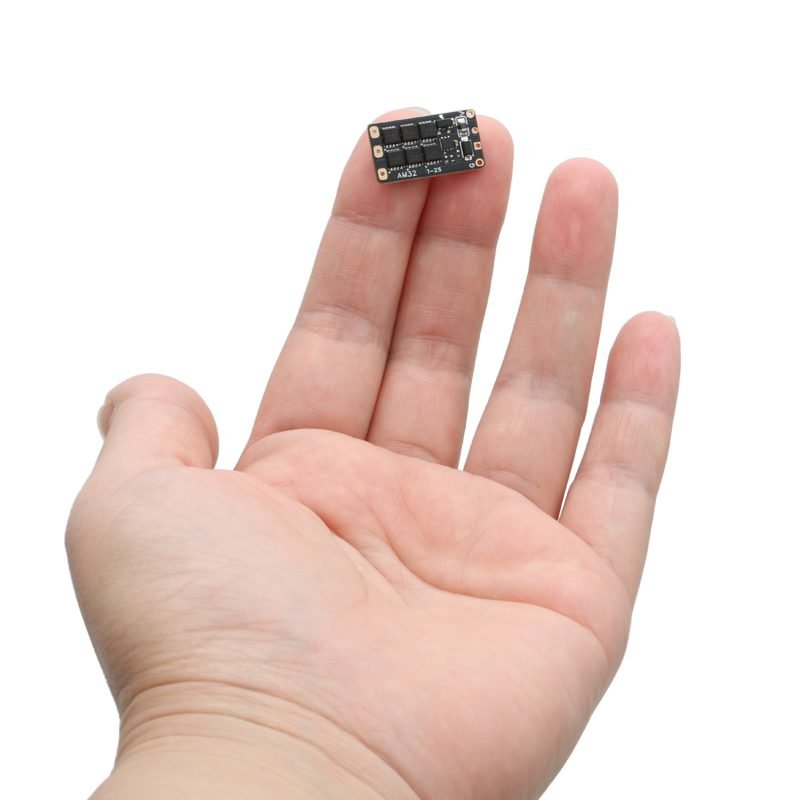

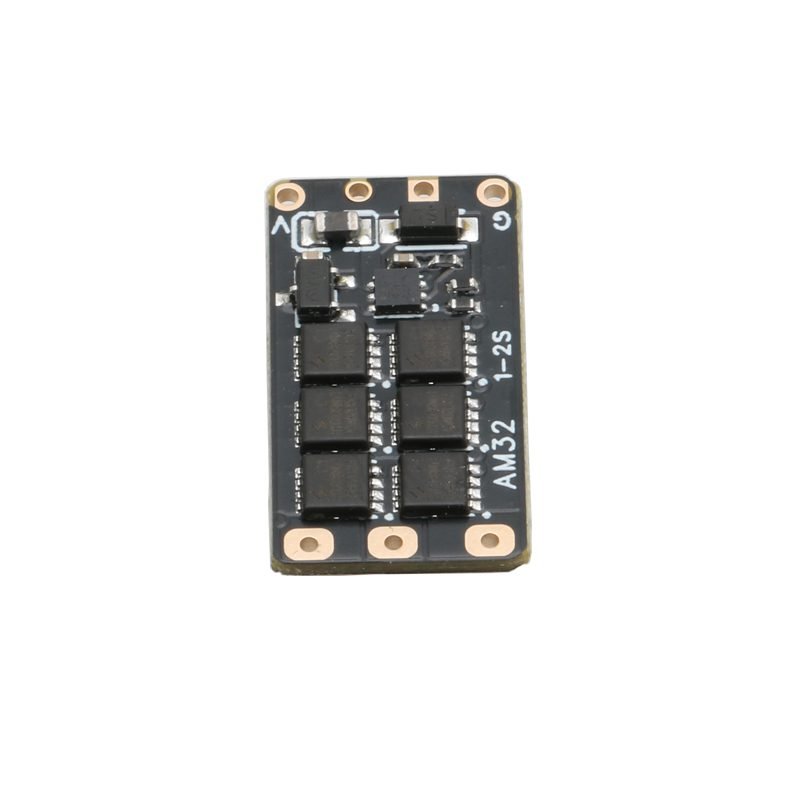

– Micro brushless ESC (Electronic Speed Controller), with a super-mini compact size, is ideal for installation in tight spaces. It is compatible with 1-2S batteries, supports a current of up to 20A, and features low-power MOSFETs carefully selected and arranged on the same side for convenient heat dissipation, delivering strong power. Despite its small size, it offers high power, making it the first choice for the power system of various micro model aircraft.
– Used in small aircraft to drive small brushless motors.

– Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.

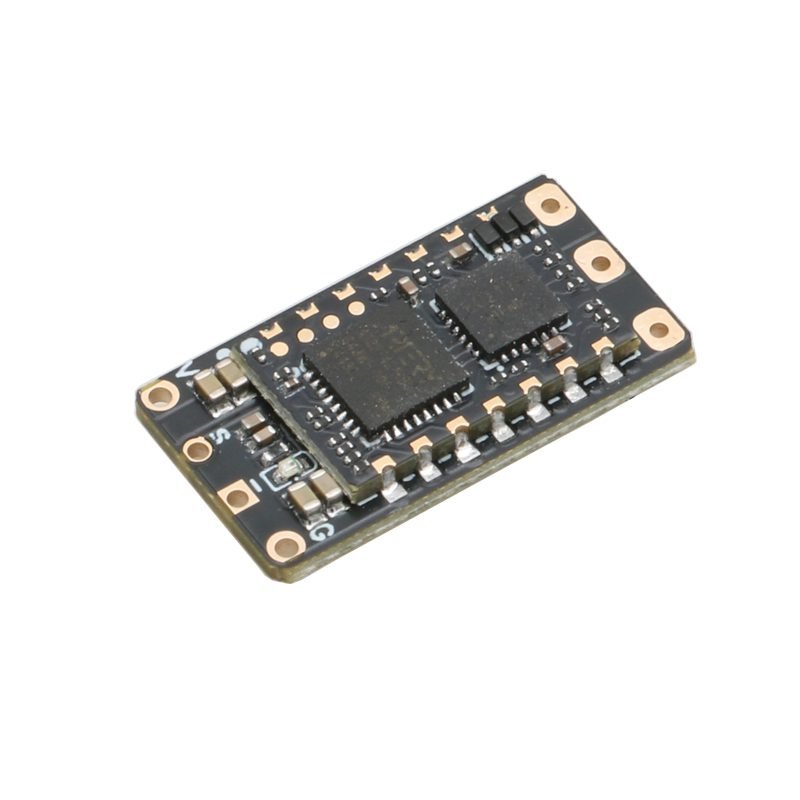

– The product is constructed by stacking two PCBs. The power board adopts a 4-layer 2oz immersion gold process to ensure high-current transmission. It is manufactured by a professional SMT factory, guaranteeing reliable quality.

Strongly recommended! When using the AM32 ESC, it is necessary to use in conjunction with a parameter adjuster.

Parameter adjuster:
– Interface: USB port/Type-C port
– Special for AM32 32-bit ESC

Parameter adjustment instructions:
1. The 3P plug of the ESC, the white signal line corresponds to S, and the black BEC negative line corresponds to G, plug into the S and G of the parameter adjuster.
2. Plug the parameter adjuster into the USB port of the computer (win10 is recommended), and plug in the battery of the ESC.
3. In the FreelyRC product manual and tool library, download the parameter adjuster driver (win10 does not require installation), and the parameter adjustment software package Esc_Config_Tool_1.82 (unzip it without installation).
4. After ensuring that the parameter adjuster driver is normal (the CH340 serial port device is recognized in the device manager), open the unzipped parameter adjustment software folder and run “SerialPortConnector.exe”

5. Operate the software in the order shown below:
In step 2, select the COM number corresponding to the adjuster in the drop-down box.
Note: This COM number is different for each computer. You need to select the COM port corresponding to the tuner device on your computer.

6. Click the “Connect” button, and an “M1” button will appear in the software interface. Click “M1”.
7. Start parameter adjustment (example: bidirectional car, turn on FOC)
8. Press Save Settings to save the settings and then unplug the ESC.

Anmerkung: Größe ist manuelle Messung, es gibt Fehler

Package include is optional:
1pcs x AM32 ESC
oder
1pcs x parameter adjuster
